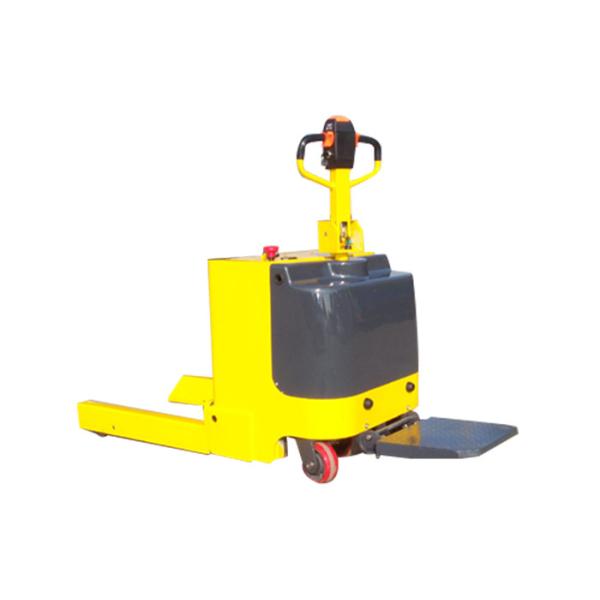

CBE20R Electric Pallet Truck Capacity 2200Kg

Name: CBE20R Electric Pallet Truck Capacity 2200Kg
Brand: Sinolift
Price: 1 USD

China CBE20R Electric Pallet Truck Capacity 2200Kg wholesale

Brand Name : Sinolift

Model Number : CBE

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : CBE20R Electric Pallet Truck Capacity 2200Kg

Load Capacity : 2200Kg

Load Center : 500mm

Overall Dimension : 1680X860X1445mm

Lifting Height : 120/240mm

Overall Length : 1680mm

Length to Front face of forks : 501mm

Fork Width : 860mm

Turning Radius : 1600mm

Drive motor : 0.9KW

Battery : D-210 24V/210Ah

Self Weight : 690Kg

Contact Now

Feature:

CBE20R Battery Drive Pallet Truck for easy transportation of pallets in big plants & warehouses. For a long travel in plants it is a versatile machine to handle the pallets safely & quickly with minimum efforts.
Operator can control easily the whole systems for lifting & transportation of loaded pallets, standing on the platform attached with the pallet truck. Excellent after sale service and parts are available over the shelf.
▲Hydraulic pump station makes the lifting of goods steady and powerful.
▲Drive wheel installed with reliable dish style braking has strong power and steady. capability.
▲Electric control system reacts quickly and operates easily.
▲It has flexible linear heavy-duty design and tight structure, and it is suitable for narrow access and is flexible operated.
▲It is accorded to European standard of EN1757-1: 2001.

Specification:

Model		CBE-22F
Load capacity	kg	2200
Operation		Pedestrian with side guards
Load center	mm	500
Driving wheel	mm	φ260*98 Polyurethane
Load wheel	mm	φ80*68 Polurethane
Balance wheel	mm	φ160*60 Nylon
Width front	mm	460
Width rear	mm	400
Lifting Height (Min/Max fork height)	mm	120/240
Overall length	mm	1680
Length to front face of forks	mm	501
Single fork width	mm	200
Fork width	mm	860
Turning radius	mm	1600
Travel speed (laden/unladen)	km/h	6.0/7.0
Lifting speed (laden/unladen)	mm/s	18/20
Lowering speed (laden/unladen)	mm/s	20/18
Service brake		Electromagnetic
Drive motor	kw	0.9
Pump power pack (Lifting Motor)	kw	2.2
Battery	V/Ah	D-210 24V/210Ah
Control system		CURTIS AC
Overall dimensions	mm	16808601445
Self weight	kg	690
